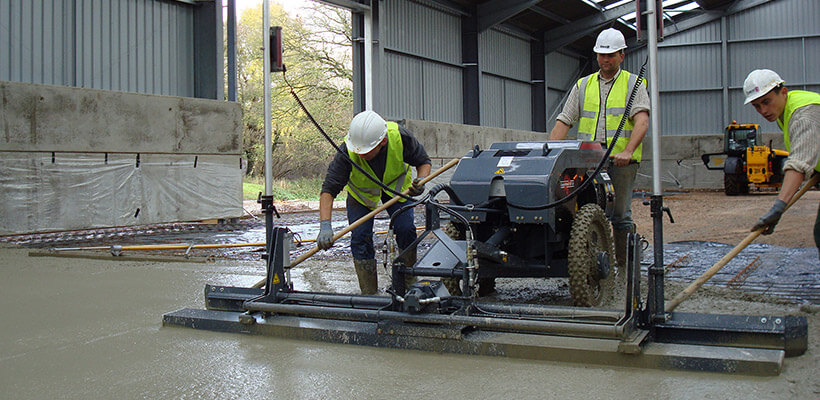

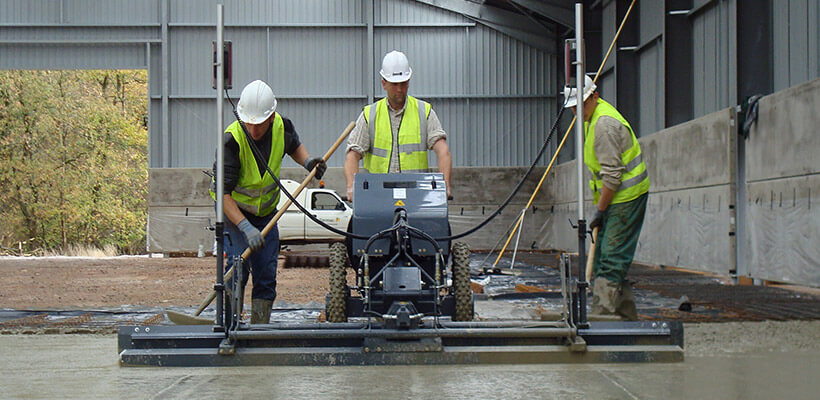

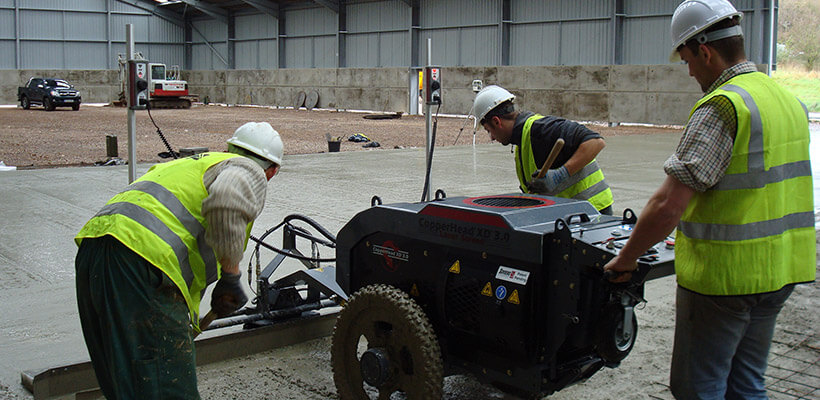

Cut your concrete to a finished grade, screed it flat, and vibrate it smooth in a single pass. With the self-propelled CopperHead® XD™ 3.0 you get superior productivity, labor savings and improved levelness with this improved 4th generation walk-behind Laser Screed® machine. As with all Somero models, the CopperHead sets the grade automatically, allowing your crew to move quickly and efficiently. Ideal for slab-on-grade and upper decks applications; but improves your performance over chaired rebar or mesh, in-floor heat and freezer slabs, including ice rinks.
Features and Benefits
- Improved floor quality
- Increased profitability
- Fewer worker injuries
- Somero Quick GradeSet System™
- Column Block Protection
- CBSSR Laser Control System
- Remote grade adjustments
- Lightweight and easy to maneuver
- Easy to set-up, break-down, and transport
- Screeds flat, single or dual slopes
- Also compatible with the Somero 3-D Profiler System®
Base Specifications
WEIGHT | 850 lbs | 386 kg |
WIDTH | 36” | 91 cm |
LENGTH | 9’ | 2.7 m |
HEIGHT | 40″ | 1.1 m |
ENGINE (STANDARD) | 11.7 HP | 8.7 kW Honda GX390 |
ENGINE (OPTIONAL) | 10.3 HP | 6.7 kW Diesel Kohler KD440 |
TIRES | Moto (standard) | High-Float (optional) |
SCREED HEAD WIDTH | 10’ | 3.1 m |
SCREED HEAD WIDTH (OPTIONAL) | 8’ | 2.4 m |
